Atlas Series Data

Understanding product part differences and comparing data

Atlas Pro
Atlas Pro Sale priceFrom $1,749.00
Atlas Carbon
Atlas Carbon Sale priceFrom $1,299.00 Regular price$1,549.00
Atlas Pro
Atlas Pro Sale priceFrom $1,749.00
Atlas Carbon
Atlas Carbon Sale priceFrom $1,299.00 Regular price$1,549.00
Motor Power

2WD-3528W / 4WD-7056W

Rated Motor Power

Max. Current

3024W

Rated Motor Power

Max. Current

Weight

14.9Kg/33lbs

12.5Kg/27.5lbs

Top Speed

60km/h

ALL TERRAIN

51km/h

ALL TERRAIN

Range

38/73km

ALL TERRAIN

27km

ALL TERRAIN

Battery Capacity

701Wh

518Wh

Drive system

2WD/4WD

4WD

Standard Charger Time

4.3H

3.5H

Quick Charger Time

0.9H

Braking

Regenerative Brakes

Regenerative Brakes

Truck

Exway DKP 10.5inch

Exway DKP 9.5inch

Max Load

350kg/780lbs

350kg/780lbs

Griptape

Shock-absorbing griptape

Shock-absorbing griptape

App

ExSkate App

Exway App

Power System

Belt

Belt

Applicable Belt Size

255/280/300/340/375

255/280/300/340/375

Applicable Pulley Size

28T/36T/44T/56T/66T

28T/36T/44T/56T/66T

Recommended Wheel Size

76/80/85/90/96/105/120/150/160/175

76/80/85/90/96/105/120/150/160/175

Flex Series Data

Understanding product part differences and comparing data

Flex Pro
Flex Pro Sale priceFrom $849.00 Regular price$949.00
Flex
Flex Sale priceFrom $599.00 Regular price$699.00
Flex Pro
Flex Pro Sale priceFrom $849.00 Regular price$949.00
Flex
Flex Sale priceFrom $599.00 Regular price$699.00
Motor Power

2520W

Rated Motor Power

Max. Current

1512W

Rated Motor Power

Max. Current

1512W

Rated Motor Power

Max. Current

Weight

9.8Kg

8.3Kg

7.7Kg/17lbs

Top Speed

50Km/h

45Km/h

40Km/h

Range

40Km

45Km

28Km/18miles

Battery Capacity

345Wh

345Wh

216Wh

Standard Charger Time

2.3H

2.3H

4.8H

Quick Charger Time

1.2

1.6H

Braking

Regenerative Brakes

Regenerative Brakes

Regenerative Brakes

Truck

Exway Trist 45°8inch

Exway Trist 45°8inch

Exway Trist 45°8inch

Maxload

200kg/440lbs

180kg/400lbs

180kg/400lbs

Griptape

Shock-absorbing griptape

Shock-absorbing griptape

Shock-absorbing griptape

App

ExSkate App

Exway App

Exway App

Power System

Belt/Hub

Belt/Hub

Belt/Hub

Applicable Belt Size

235~275

235/255/281

235/255/280

Applicable Pulley Size

28T/36T/44T

28T/36T/44T

28T/36T/44T

Recommended Wheel Size

76/80/85/90/96/105/120

76/80/85/90/96/105/120

76/80/85/90/96/105/120

Mini and X1 Series Data

Understanding product part differences and comparing data

Wave
Wave Sale priceFrom $749.00

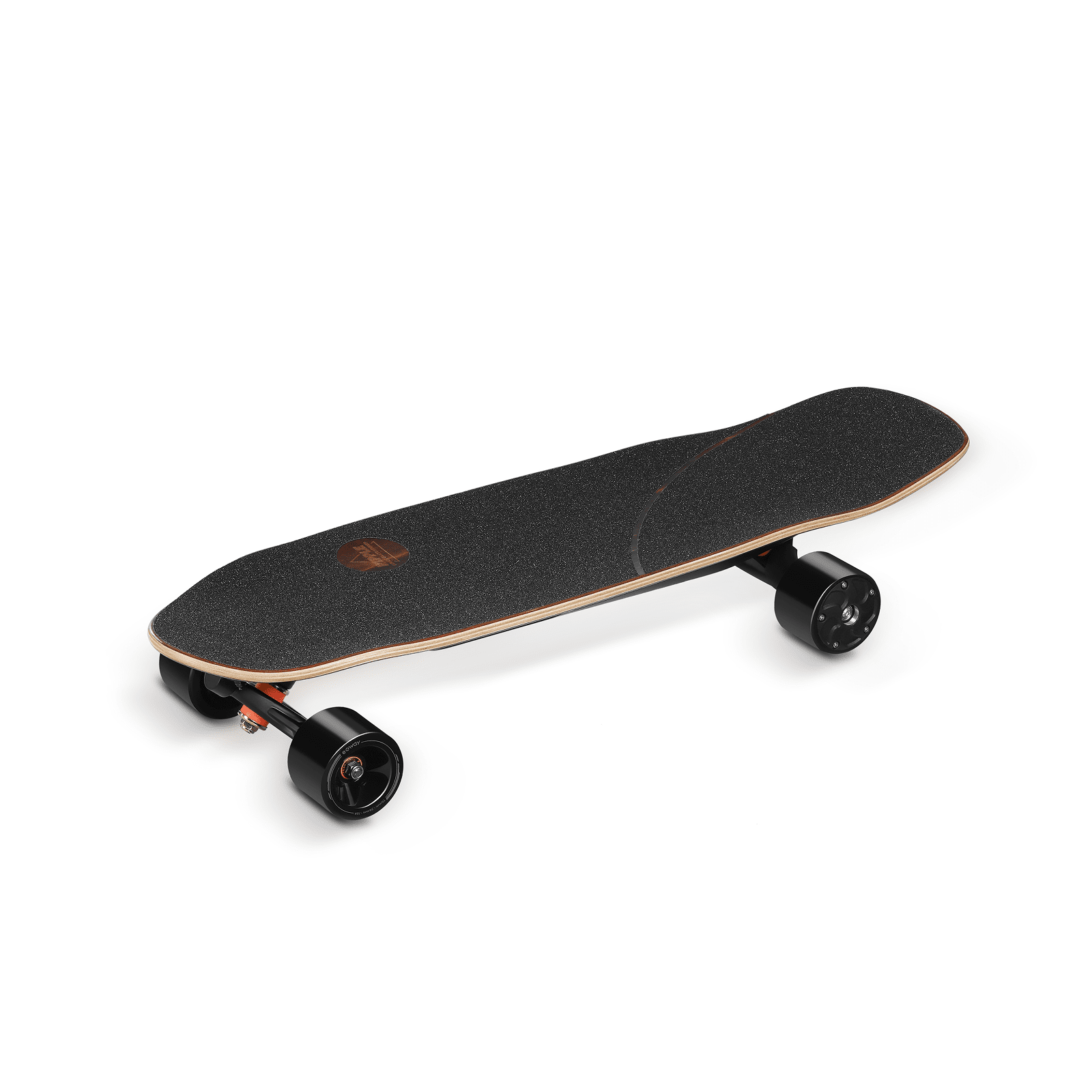

Ripple
Ripple Sale priceFrom $389.00 Regular price$419.00
X1 Max
X1 Max Sale priceFrom $649.00
Wave
Wave Sale priceFrom $749.00
Ripple
Ripple Sale priceFrom $389.00 Regular price$419.00
X1 Max
X1 Max Sale priceFrom $649.00
Motor Power

1008

WRated Motor Power

Max. Current

672W

Rated Motor Power

Max. Current

1512W

Rated Motor Power

Max. Current

Weight

6.9Kg/15lbs

5.9kg/13lbs

7.6Kg/17lbs

Top Speed

38Km/h

35Km/h

45Km/h

Range

21Km/13miles

12km/7.5miles

30Km/19miles

Battery Capacity

180Wh

99wh

230Wh

Standard Charger Time

4H

3.3H

5H

Quick Charger Time

1.8H

1H

1.8H

Braking

Regenerative Brakes

Regenerative Brakes

Regenerative Brakes

Truck

Exway Trist 45°7inch

Exway Trist 45°7inch

Exway Trist 45°8inch

Max Load

200kg/440lbs

120kg/264lbs

200kg/440lbs

Griptape

Shock-absorbing griptape

Shock-absorbing griptape

Shock-absorbing griptape

App

Exway App

Exway App

Power System

Belt/Hub

Hub

Belt/Hub

Applicable Belt Size

235/255

Applicable Pulley Size

28T/36T

Recommended Wheel Size

76/80/85/90/96/105

75

85/90/105

These tests are made with the most up-to-date firmware. Please always keep your firmware up-to-date to have the optimal performance.
