- Shredlights compatible
- Heat-treated steel supports for durability
- Compatible with up to 180mm sized tires
- High-strength nylon composite mudguards

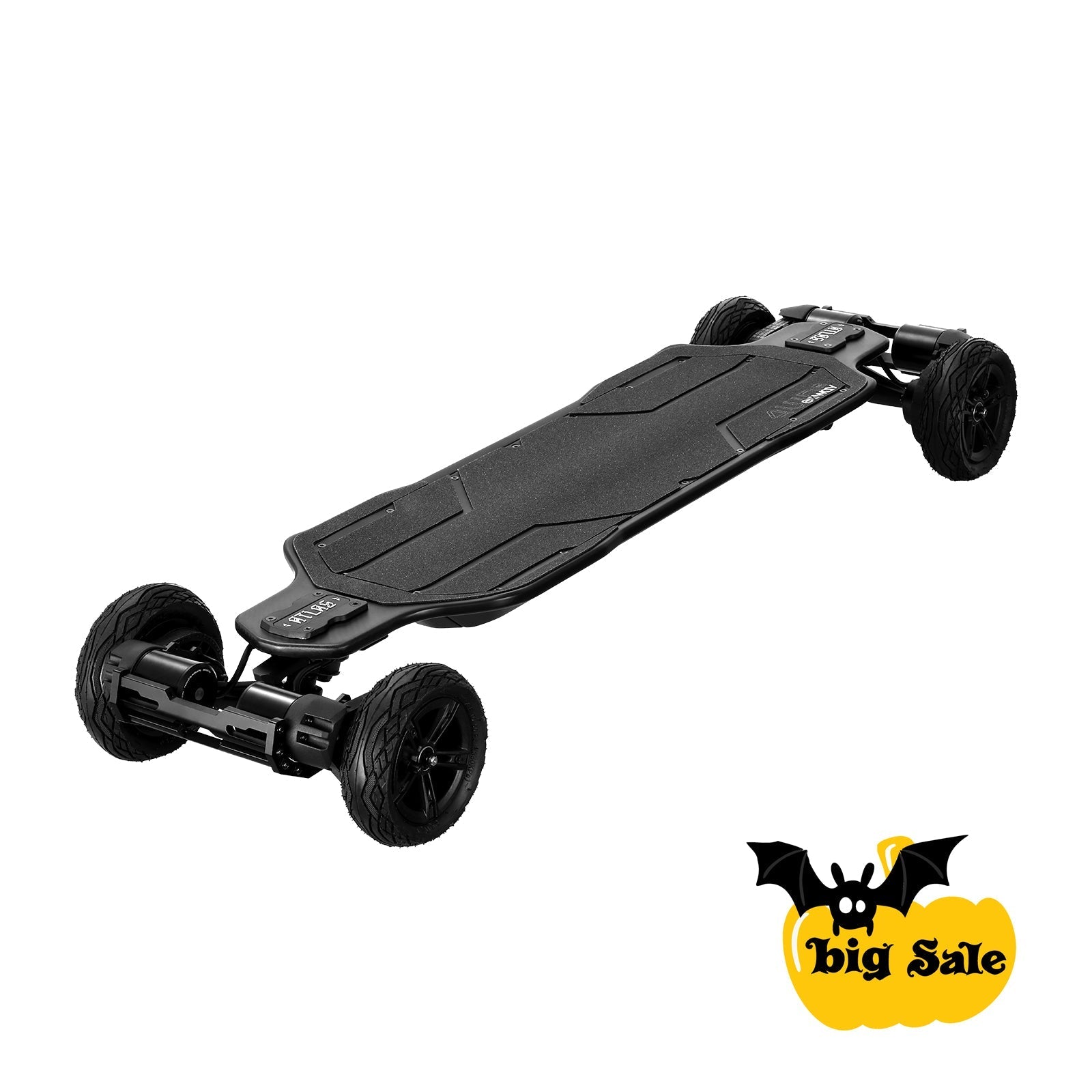

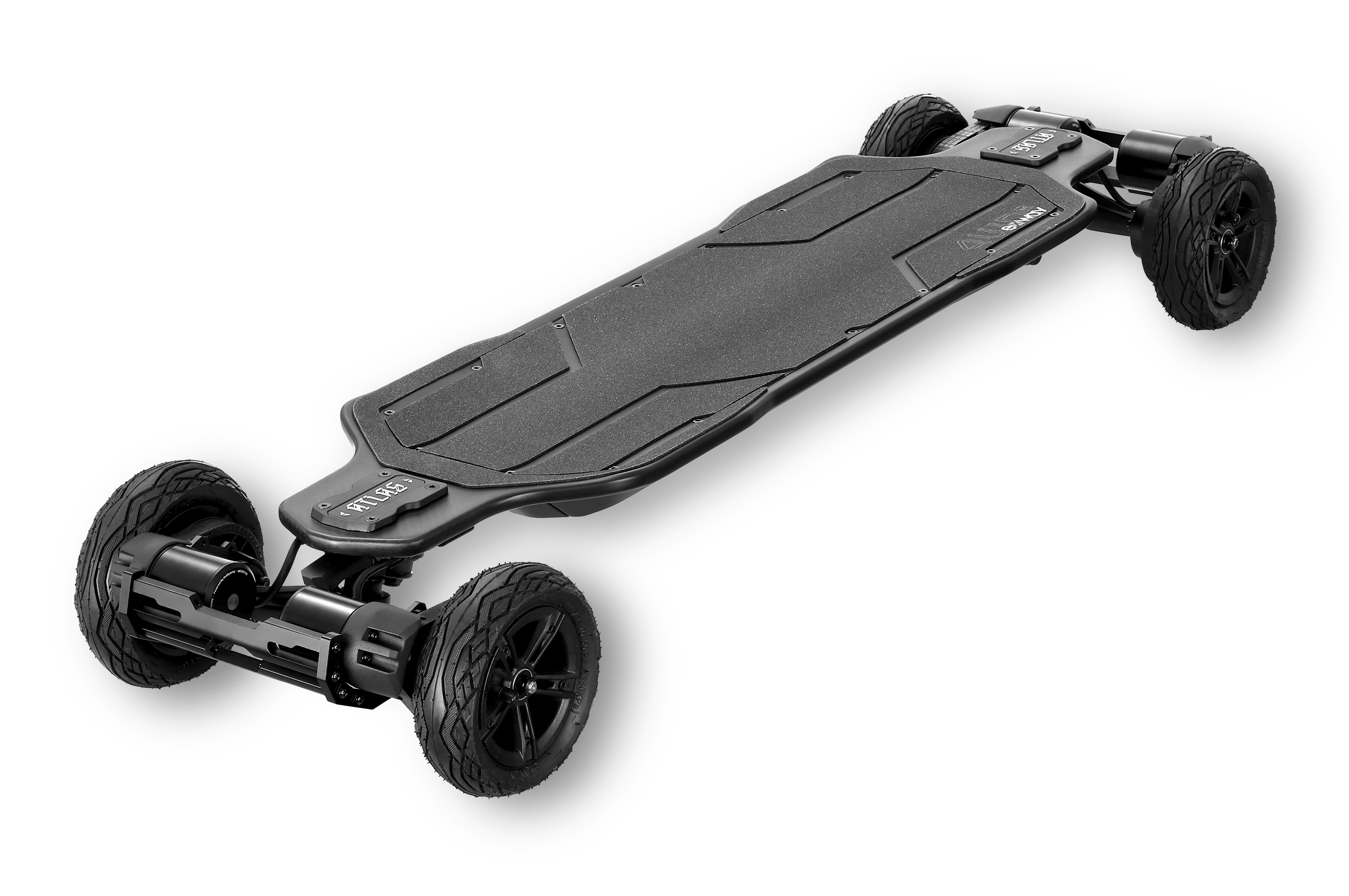

Exway Atlas
Τιμή πώλησης$899.00 USD
Κανονική τιμή$1,699.00 USD (/)
General Info
Model:Atlas Belt
Max Speed:50 KPH
Levels Assist:1.2.3.4.Turbo levels Adjustable Acceleration strength
Braking:FOC Regenerative Braking & Adjustable Braking strength
Range:Up to 30 Kilometer(AUX Pack can be installed to reach 95KM range)
Total Weight Limit:300 lbs
Ideal Use:All-Terrain
Folding:No
Rider :Suitable for ages 15 and up
Weight:11.5 KG
Safety Certified:Comply with UL2272, CE standards
SIZE: 119*31.2*16cm / 46.9*12.2*6.2inch (Max Size,L*W*H)
DECK: Carbon Fiber
TRUCKS: Trist 9.5" DKP (Forging + CNC Precision Machined) (Replaceable RKP)
WHEELS: 160*50mm High quality rubber wheels (any skateboard wheels from 85-200mm)
Hubs:High precision plastic hub (Replaceable aluminum CNC Hub)
MOTORS: 3024W power rated 4240*4 Custom Brushless Sensored Motors
DRIVE:Belt（BELT RATIO:3.7）
ESC: Custom 12S 50.4V ESC2.0 - 2.4G Wireless & Bluetooth
BATTERY:518Wh,12S3P 50.4V 120A Smart BMS
BATTERY PACK: AUX Pack can be installed
CHARGER: 4A Charger (1050W Quick Charger)
CHARGING TIME: 518WH 3.3H (1050W 30min)
REMOTE: Smart Remote R2
APP SUPPORTED:Yes
Mud Guards:Yes
Miscellaneous：Check
Technical Overview
Atlas is factory set to 20KM/H. When the rider reaches 10KM, the 1.2.3.4.Turbo gears are automatically unlocked, and it has a tank U-turn function, without bending over to change direction. The maximum speed in Turbo mode can reach 50KM/H. If you want to ride in an area where stepping on the accelerator is prohibited, Atlas can also be driven without turning on the power. Exwayboard meets the IP55 waterproof standard. IP55 means that your skateboard can withstand water from the road, and splashes or raindrops on wet roads will not cause damage to it. Your skateboard is not suitable for long-term rain, immersion in water or pressurized spray. Do not use a high-pressure cleaner or sprayer to clean the skateboard.
*The maximum driving distance is determined at a speed of 25km/H on flat terrain, and the rider weighs 75KG (160 pounds).
All electric skateboards are produced in batches and then shipped to our regional warehouses.
After arriving at the warehouse, US orders will be received within 3-7 business days, and European orders will be received within 3-7 business days.
If our regional warehouse does not have stock, it will be considered a bulk reservation. Large quantities of electric skateboards are shipped to US and European warehouses on the way.
We will confirm the shipping address and delivery date with the customer within 24 hours after receiving the order.
1 * Atlas
1 * Remote Bag ( include remote , charging cord, etc.)
1 * Tool Bag(Includes all tools to disassemble the boards)
1 * User Manual
1 * 4A Charger
1 * Exquisite bracelet
Rider Reviews
About
Featured content
Organize content into multiple columns to share useful information to your customers about your products, values...

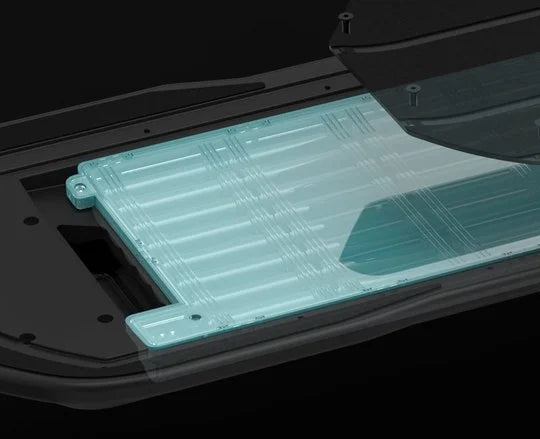

12S Smart and Modular Battery System
Carbon fiber housing shields the cells and electronics from the environment.
Designed to be user-replaceable.

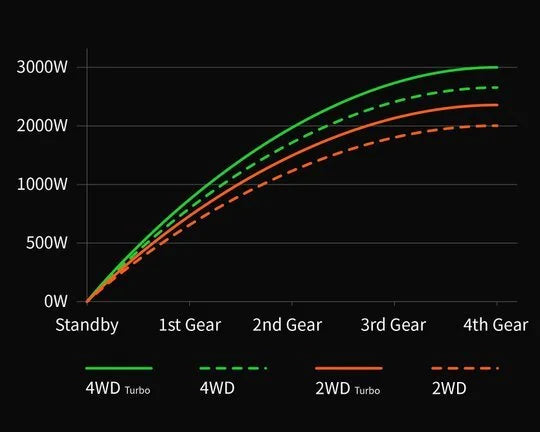

ALL THE POWER YOU NEED
Exway's power ratings are based on the entire systems' capabilities, free of cherry picked stats considered in a vacuum.
- 2WD: 2000W peak power
- 4WD: 3000W peak power

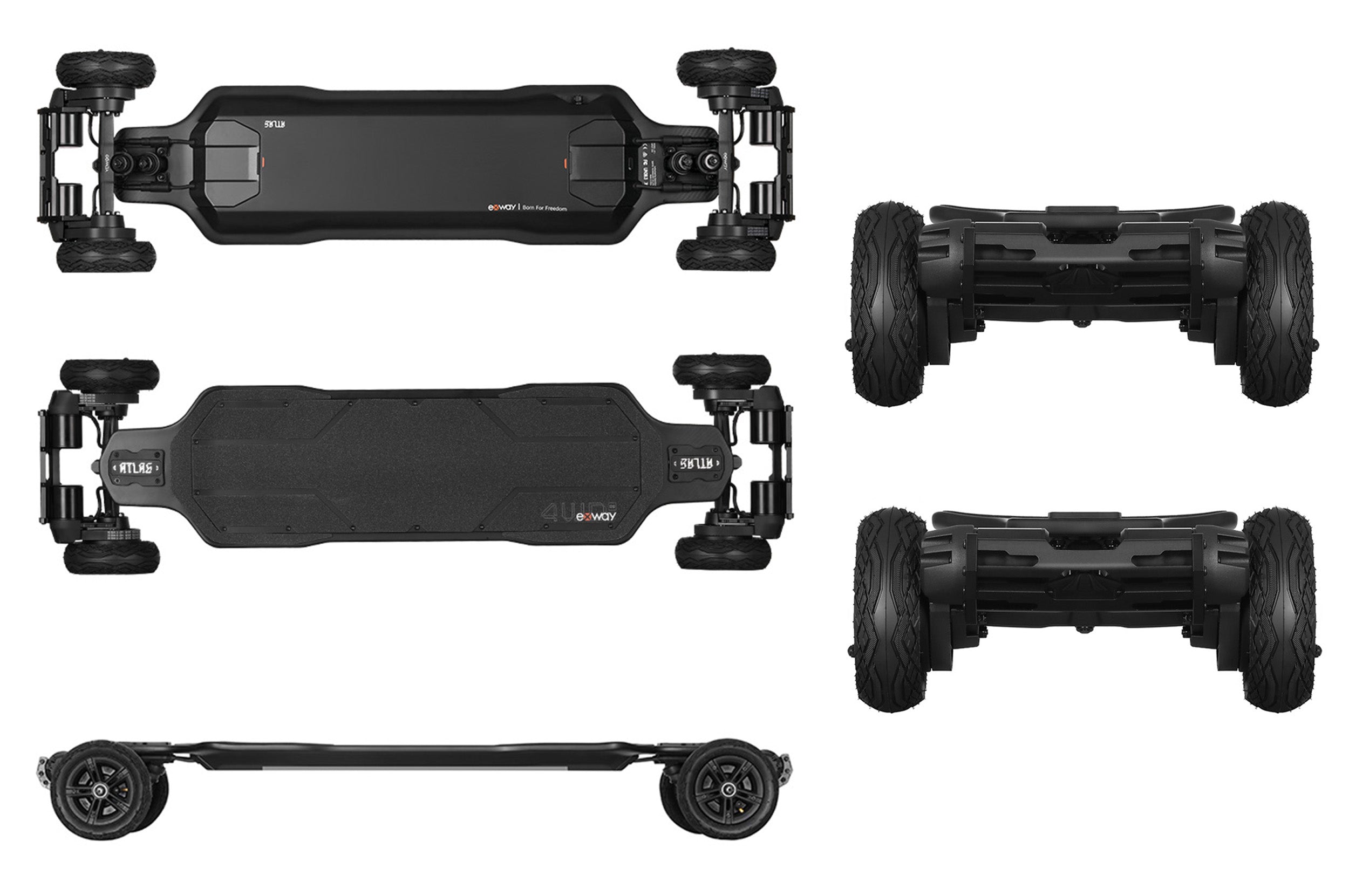

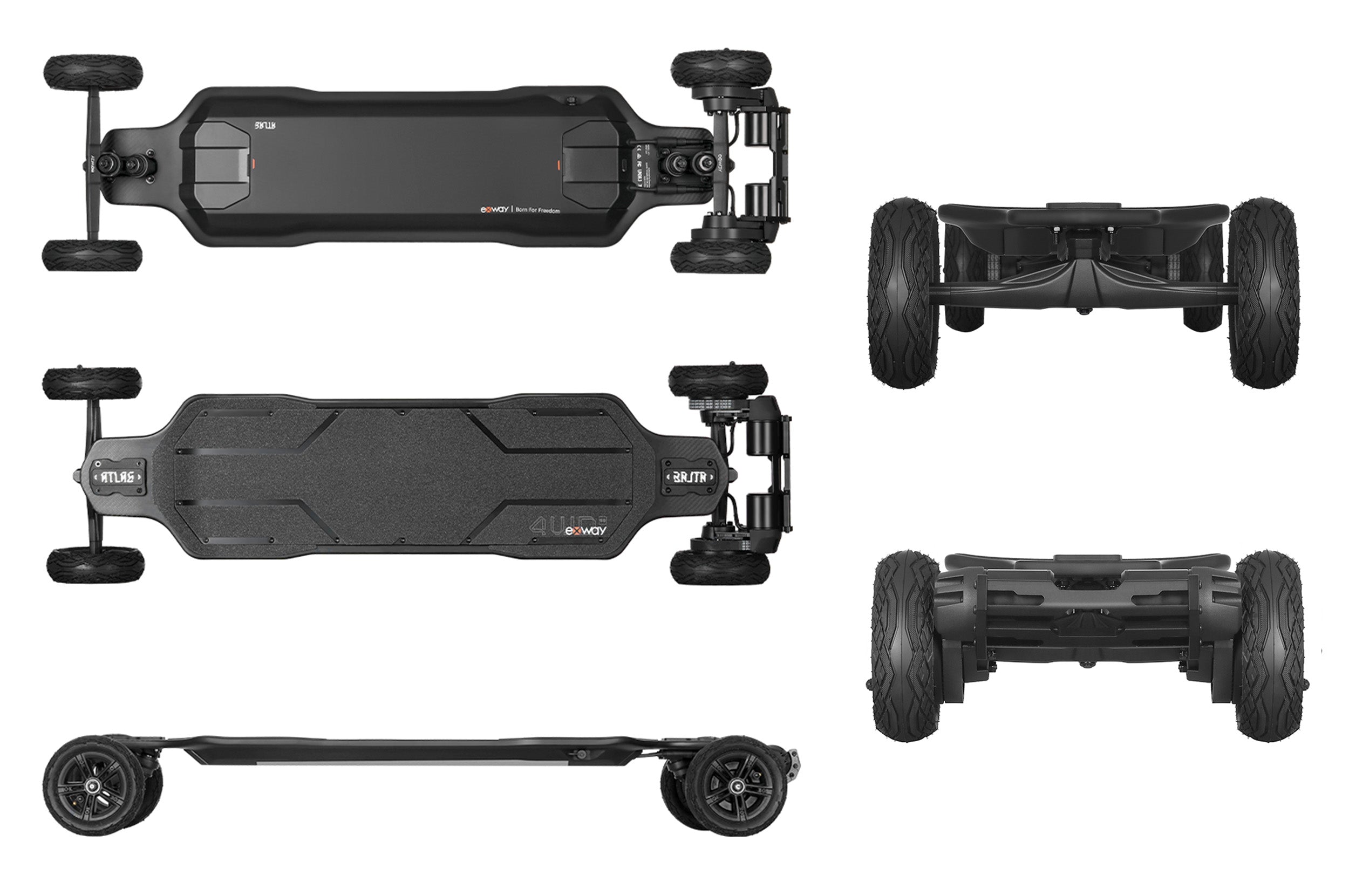

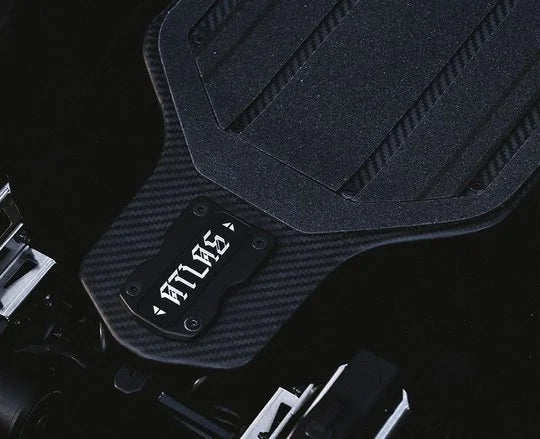

CARBON FIBER UNIBODY
Sleek and stealthy with the delicate electronics embedded within the high-strength carbon deck.
MAKE IT YOURS
Ride the way you want to with the wide range of custom-made accessories such as mudguards, bashguards, handles, etc.
MODULAR DRIVETRAIN
Easily swap between 2WD/4WD and soon, between Belt/Direct drives.
WHEELS FOR DAYS
A wide selection of pulleys available for wheel compatibility.
SLEEK AND QUICK

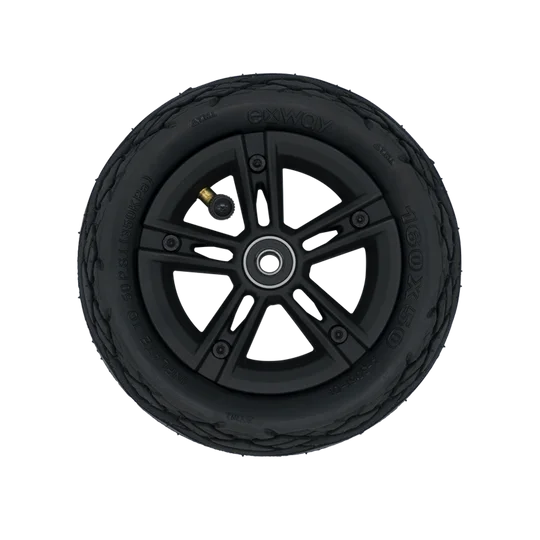

160x50mm in size, these lightly treaded wheels are best suited for day-to-day use, light trails and damp conditions.

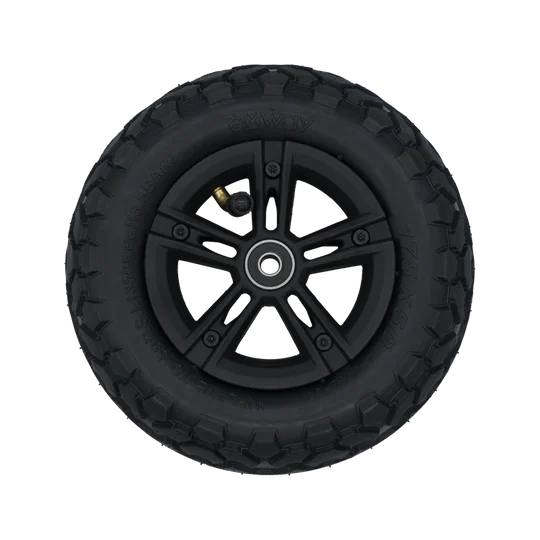

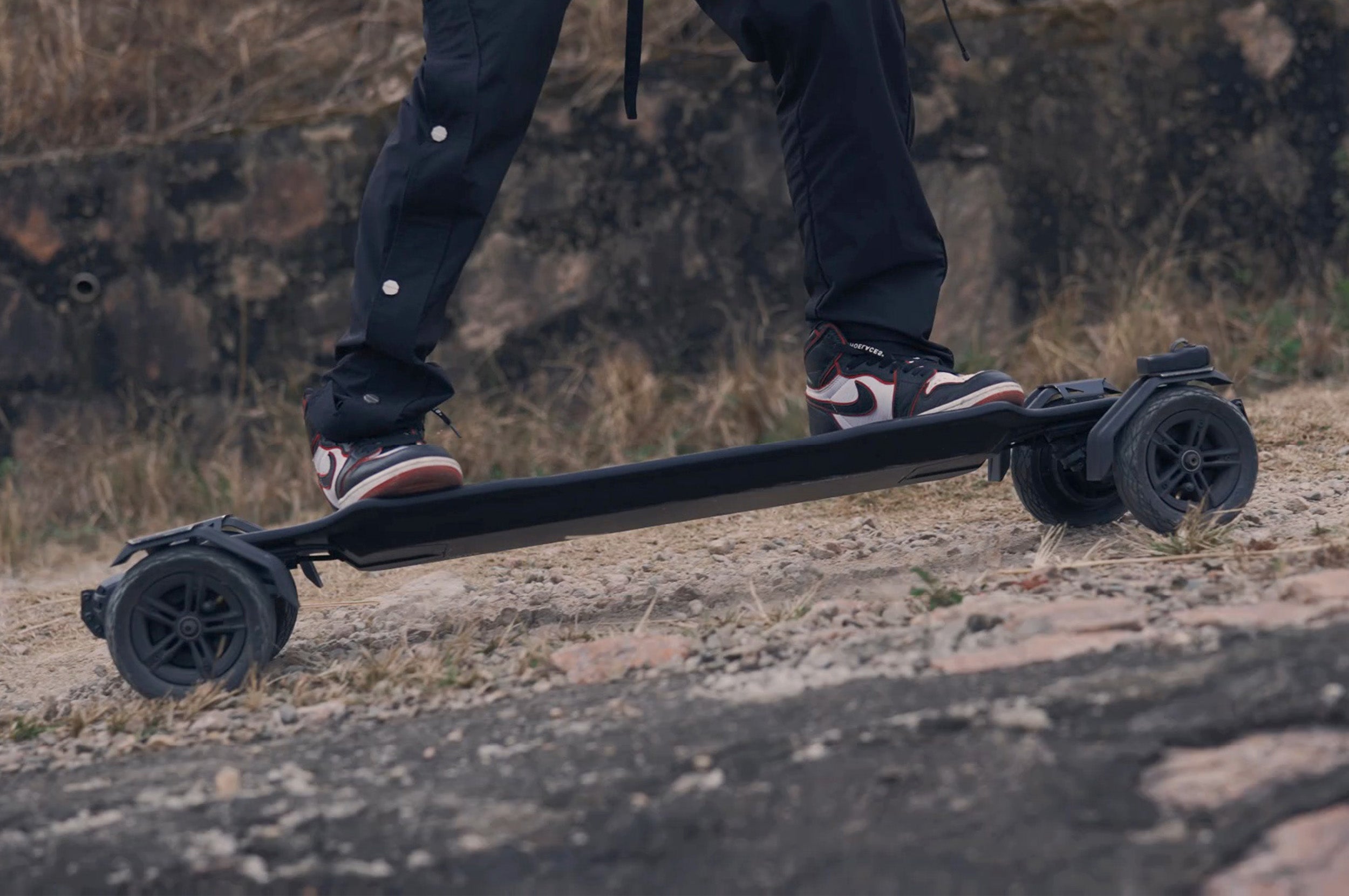

FAT AND KNOBBY
175x50mm in size, these monstrous wheels roll over harsh terrain without skipping a beat. Best suited for dirt trails, sand, and other rough terrain.

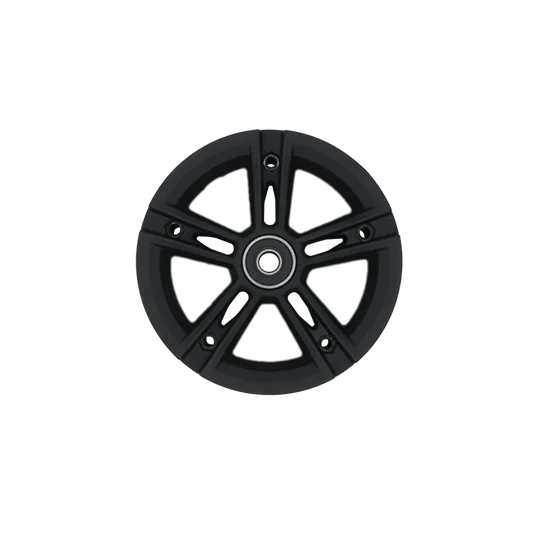

JUST THE HUB
Already have a favorite tire? Bare hubs are available and will fit most 125-200mm tires.
A WAY TO RIDE FOR EVERYONE

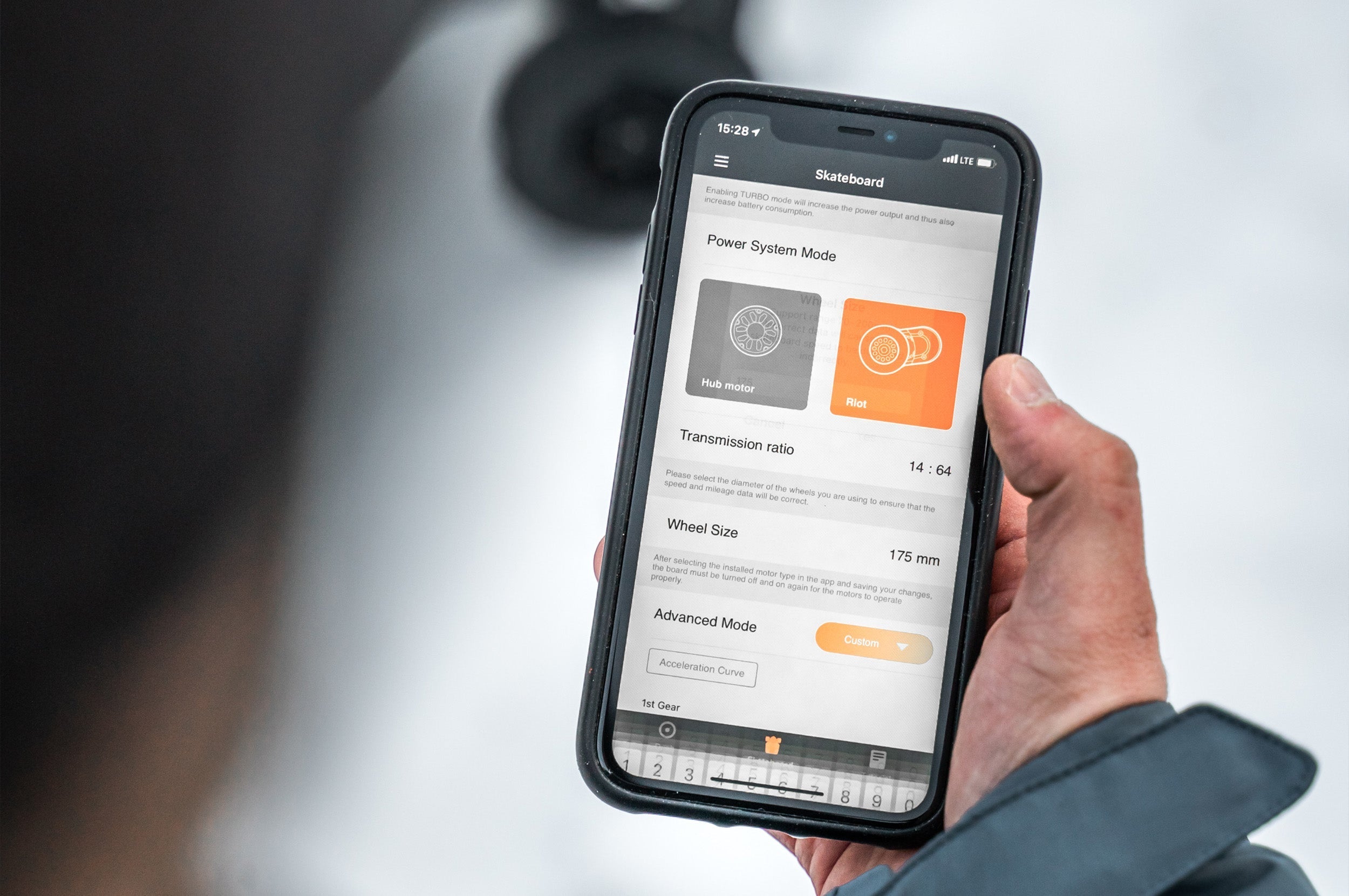

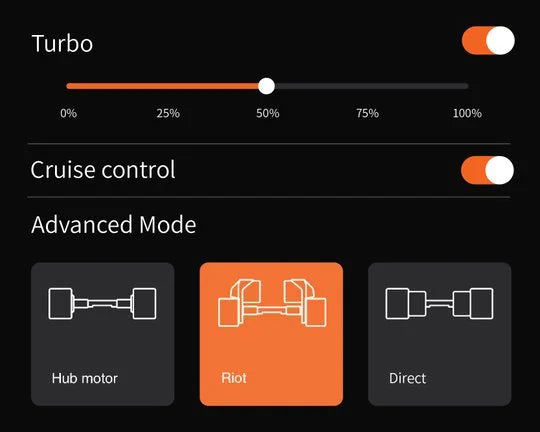

Tank mode, free mode, turbo mode, there's a way to ride for everyone. Choose yours with the Atlas compatible Exway app.
RIDE IT YOUR WAY

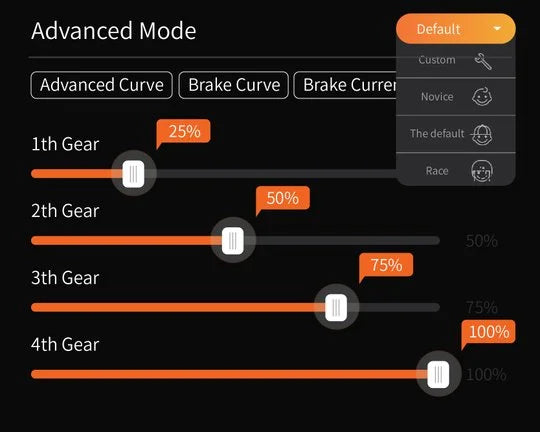

Tune the ride characteristics of your board the way you like it.
SWITCH BETWEEN 2WD/4WD*
Need more traction on the trails? Or maybe you're looking to conserve some power on smoother roads. Easily swap between 2WD/4WD using the remote.
*Only applicable for 4WD boards
- Light and strong aviation
-grade aluminum alloy
- Quick and easy installation
- Protects your motors from rocks and other debris
- Forged and CNC finished for strength and stability
- T6 heat treated
- Improved hanger design with reinforcement flaps
- Compatible with large cup washers for both boardside and roadside bushings.
FAQ
- Provided pictures, models, functions, performances, and other data on the page is for reference. For specific information, please refer to the actual product.
- Due to the properties of lithium-ion batteries, the maximum capacity of the battery will decrease with age and usage.
- Battery range estimates depend on conditions such as rider weight, speed, temperature, wind, tire pressure, terrain, incline, etc. Mileage may vary.
Are the boards waterproof?
The water-resistance of the skateboard is IP55, which is resistant to splashes and dust under normal conditions, but if you ride in a puddle or where the water level is high, or even immerse your skateboard in water, the water is likely to enter the electrical parts and damage the part.
Please do not ride in the rain or any wet ground with water, this will cause a high risk of water damage and may cause the motor bearings to rust and make noise.
